Elplast
Bathroom fan Aero VS100HT+
Bathroom fan Aero VS100HT+
Couldn't load pickup availability
- Rated voltage: 230 V
- Colour: white
- Mains frequency: 50 Hz
- Power consumption: 19 W
- Air output: 100 m3/h
- Bearing type: sliding
- Degree of protection (IP): IP-X4
- Sound pressure level: 39.5 dB (A)
- Speed: 2550 rpm
- Nominal size: 100 mm
- Material: ABS/PP
- Mounting location: Wall
- Mounting type: surface mounted
- Fan weight: 0.47 kg

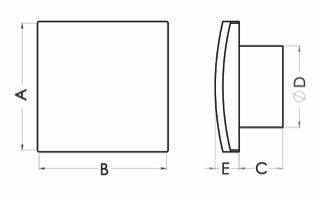

- A: 158 mm
- B: 158 mm
- C: 61 mm
- D: 99 mm
- E: 25 mm
- Mounting hole: Ø100 mm
Fans designed to support ventilation in residential and commercial premises are characterised by quiet operation, high efficiency and reliability. They use high quality material which ensures the durability of the device and the maintenance of aesthetic values.
The duct fan is an ideal solution for bathrooms and toilets. Its purpose is to support gravitational ventilation and it can be installed in rooms that have individual ventilation ducts, in residential buildings, collective housing and public use buildings. However, its use should be avoided in rooms where corrosive or explosive atmospheres may be present.
The HT- model has all the functions of the T-system and is additionally equipped with a humidity sensor. This allows it to start the fan when the humidity exceeds a set threshold. The fan will automatically be switched on when the humidity in the air around the fan reaches a preset level or when the ON/OFF switch is activated. It will switch off after a preset delay time, calculated from the moment the room reaches the required humidity level or the W/WO switch is switched off.
Construction:
The fan is made of high-quality plastic.
Installation:
- Wall mounting of the fan
- Designed for indoor use.
- Mounting is carried out with screws.
Equipment:
- Moisture sensor with time delay,
- LED indicator light
- Non-return flap.
